Servo Motor
Independently developed
Freely Programmable
Error Indication
LED Indicator
Lock-on Parameters
Easy Installation
High Torque Output
Product Features
High Precision
Standard Deviation ±3%
Servo control technology, with a standard deviation of ±3% for torque accuracy;
Ensure the consistency of millions of operations;
Cmk≥1.67
Torque setting tolerance ±10%;
That is, the pass rate is as high as 99.99994%.
ISO9001
Complete the quality management system certification
Core Technology ©
Self-developed core patented algorithm for digital tightening;
Self-developed servo controllers, motors, sensors, reducers, etc.
Multi-strategy
Tightening Strategy
Four - step / Fast - step；
Four-step Mode
There are four stages: tooth insertion, screw insertion, mating surface, and tightening；
Fast Mode
There are four stages: tooth insertion, screw insertion, mating surface, and tightening
Efficient Tightening
Meet different tightening requirements;
Traceability
Free Programming
Torque, rotational speed, rotation direction and waiting time can be customized.
Data Record
Real-time collection and recording of key data such as torque, Angle and time;
The sampling frequency of the visual curve table is high. Improve the traceability of data;
Data Management
Support MES/PLC connection;
Real-time upload to the upper computer and MES system;
Data Storage
It can simultaneously store tightening curves and data.
One million tightening curves;
One million tightening data points;
Data Export
It can be exported in (xls,xlsx) formats.
Intelligentize
Real Time Monitoring
Built-in torque/Angle sensor;
Real-time monitoring of the tightening process;
Synchronously record data such as torque, Angle and time;
Automatically identify anomalies such as floating locks and missed locks and immediately issue an alarm.
Stabilization of Speed
Support free adjustment of rotational speed;
Maintain a constant output even at high speeds;
Ergonomic Design
Reduce the muscle load from long hours of work;
Overload Protection
When overloaded, the buzzer emits a rapid and continuous beeping sound.
Wide Voltage Design
Wide voltage design (100-240V)
The output torque deviation is less than ±1% under ±15% voltage fluctuation.
Temperature Stability
Operating temperature range
-10℃ to 50℃
Maintain accuracy in high-temperature environments (such as engine assembly);
Convenience
Man-machine Interaction
The visual interface of the data acquisition system;
Enable users to have an intuitive understanding of the progress and results of data collection;
Communication Connection - Configurable for Digital I/O
Digital I/O (Input/Output)
Provide a free and open agreement to the public;
Connect to the data acquisition system;
Barcode scanner connection;
Multiple Communication
COM、CAN、RS485、RS232
Remote upgrade ＆ Maintenance
Remote OTA system update
Multilingual selection
高精度
多策略
可追溯
智能化
便捷性

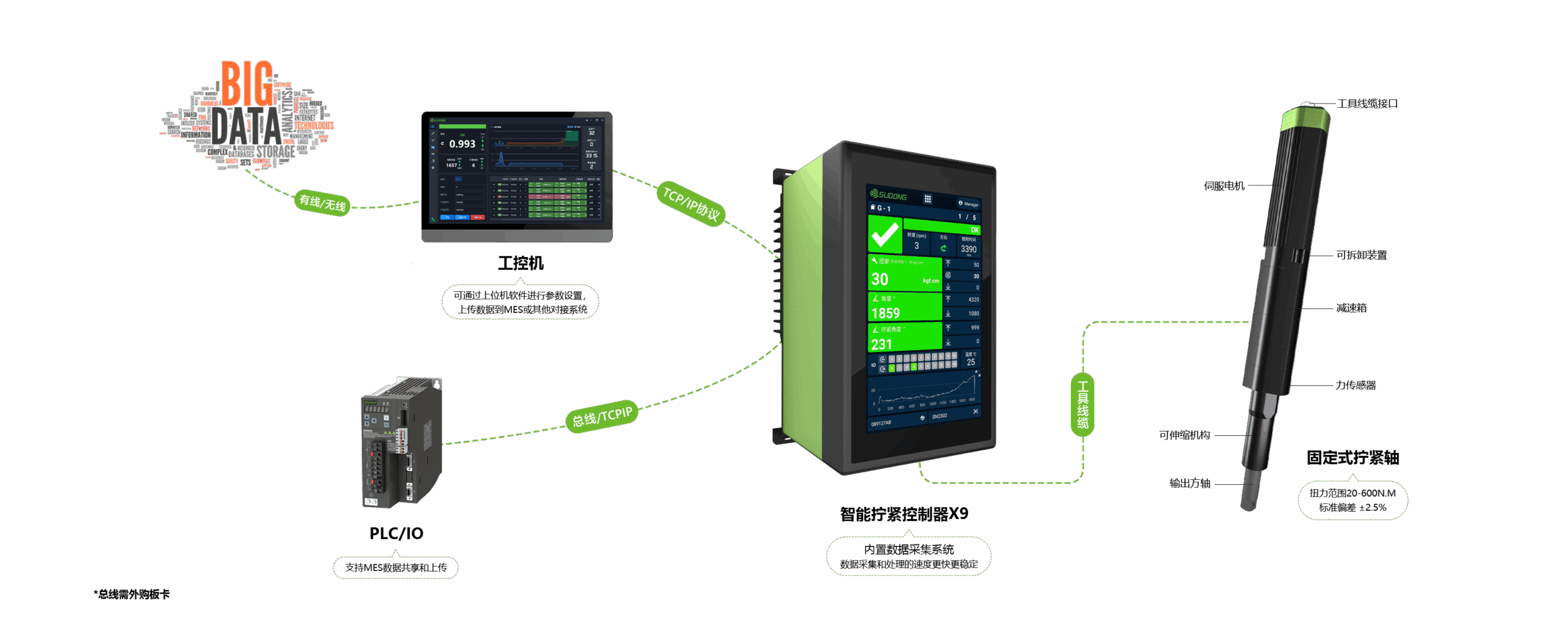

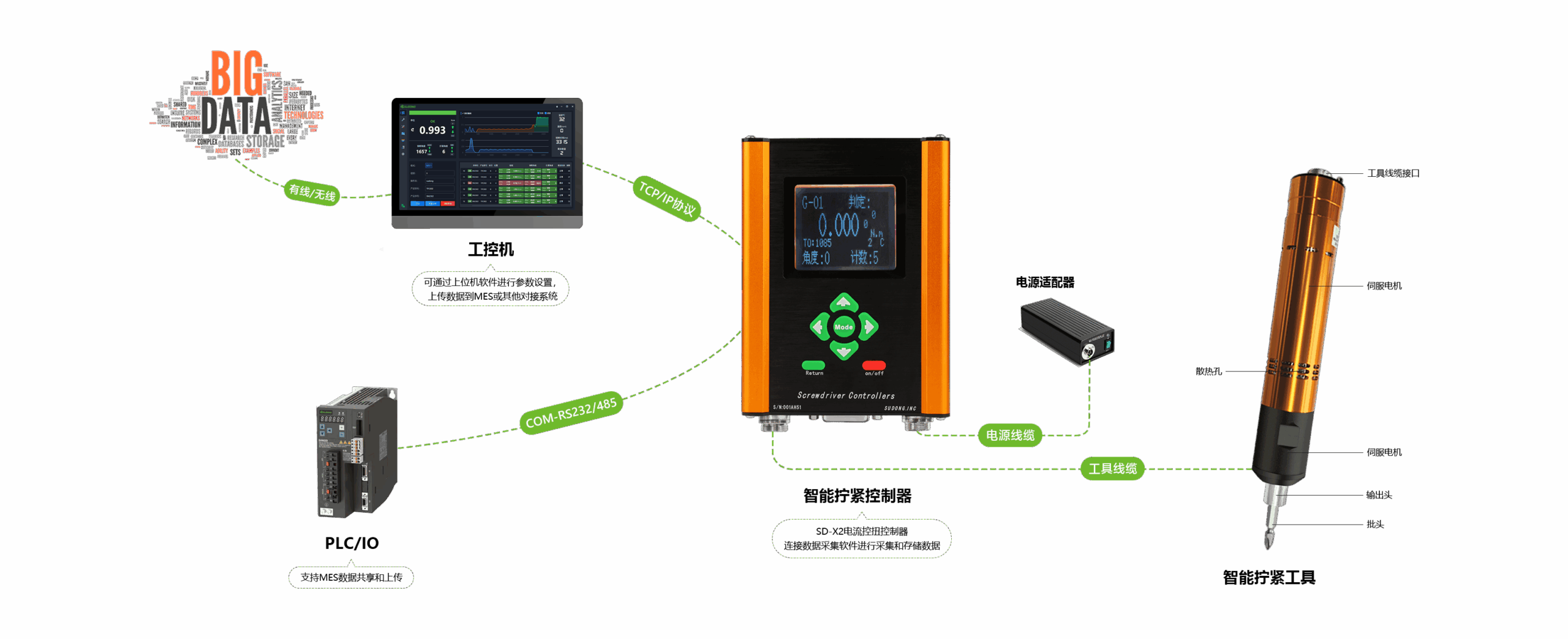

Product Structure Diagram
