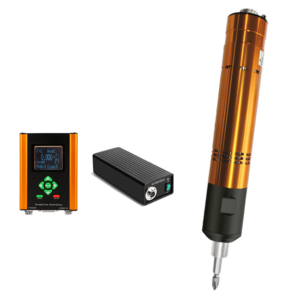

Servo Motor
Independently developed
Freely Programmable
Error Indication
LED Indicator
Lock-on Parameters
Easy Installation
High Torque Output
Product Features
High Precision
Standard Deviation ±3%
Servo control technology, with a standard deviation of ±3% for torque accuracy;
Ensure the consistency of millions of operations
Cmk≥1.67
Torque setting tolerance ±10%;
That is, the pass rate is as high as 99.99994%
ISO9001
Complete the quality management system certification
Core Technology ©
Self-developed core patented algorithm for digital tightening;
Self-developed servo controllers, motors, sensors, reducers, etc
Multi-strategy
Tightening Strategy
Four - step / Fast - step
Four-step Mode
There are four stages: tooth insertion, screw insertion, mating surface, and tightening
Fast Mode
There are four stages: tooth insertion, screw insertion, mating surface, and tightening
Efficient Tightening
Meet different tightening requirements
Traceability
Free Programming
Torque, rotational speed, rotation direction and waiting time can be customized
Data Record
Real-time collection and recording of key data such as torque, Angle and time;
The sampling frequency of the visual curve table is high. Improve the traceability of data
The sampling frequency of the visual curve table is high. Improve the traceability of data
Data Management
Support MES/PLC connection;
Real-time upload to the upper computer and MES system
Real-time upload to the upper computer and MES system
Data Storage
It can simultaneously store tightening curves and data.
One million tightening curves;
One million tightening data points
One million tightening data points
Data Export
It can be exported in (xls,xlsx) formats
Intelligentize
Real Time Monitoring
Built-in torque/Angle sensor;
Real-time monitoring of the tightening process;
Synchronously record data such as torque, Angle and time;
Automatically identify anomalies such as floating locks and missed locks and immediately issue an alarm
Real-time monitoring of the tightening process;
Synchronously record data such as torque, Angle and time;
Automatically identify anomalies such as floating locks and missed locks and immediately issue an alarm
Stabilization of Speed
Support free adjustment of rotational speed;
Maintain a constant output even at high speeds
Maintain a constant output even at high speeds
Ergonomic Design
Reduce the muscle load from long hours of work
Overload Protection
When overloaded, the buzzer emits a rapid and continuous beeping sound
Wide Voltage Design
Wide voltage design (100-240V)
The output torque deviation is less than ±1% under ±15% voltage fluctuation
Temperature Stability
Operating temperature range
-10℃ to 50℃
Maintain accuracy in high-temperature environments (such as engine assembly);
Convenience
Man-machine Interaction
The visual interface of the data acquisition system;
Enable users to have an intuitive understanding of the progress and results of data collection
Enable users to have an intuitive understanding of the progress and results of data collection
Communication Connection - Configurable for Digital I/O
Digital I/O (Input/Output)
Provide a free and open agreement to the public;
Connect to the data acquisition system;
Barcode scanner connection
Connect to the data acquisition system;
Barcode scanner connection
Multiple Communication
COM、CAN、RS485、RS232
Remote upgrade ＆ Maintenance
Remote OTA system update
Multilingual selection
Product Structure Diagram
